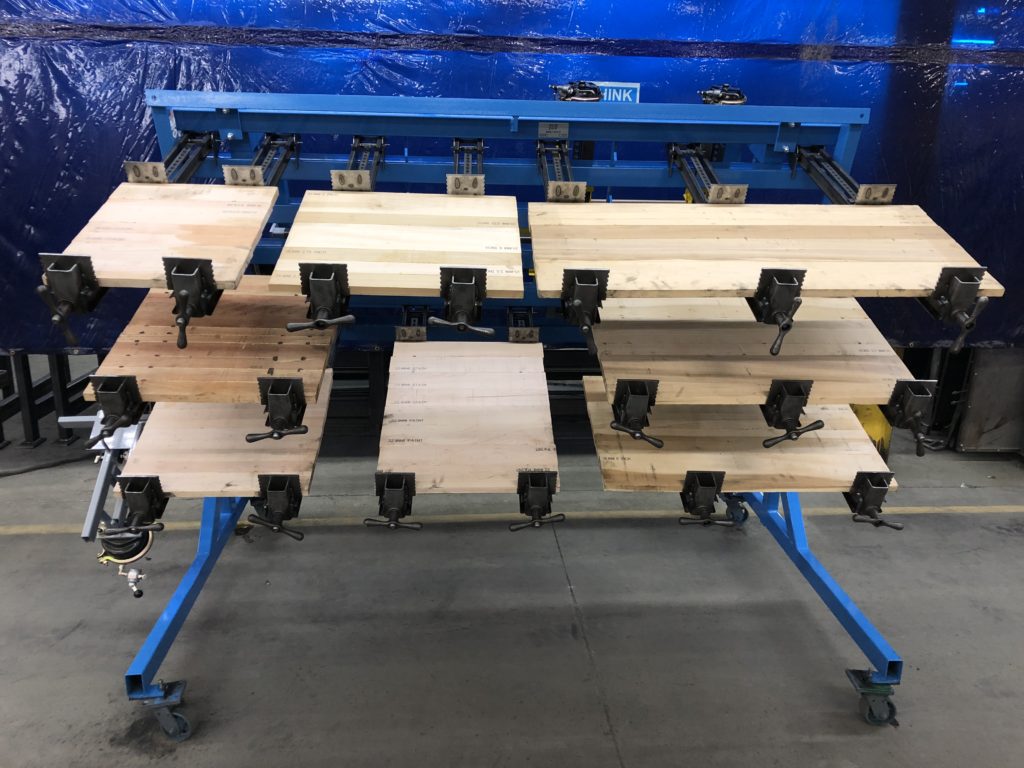

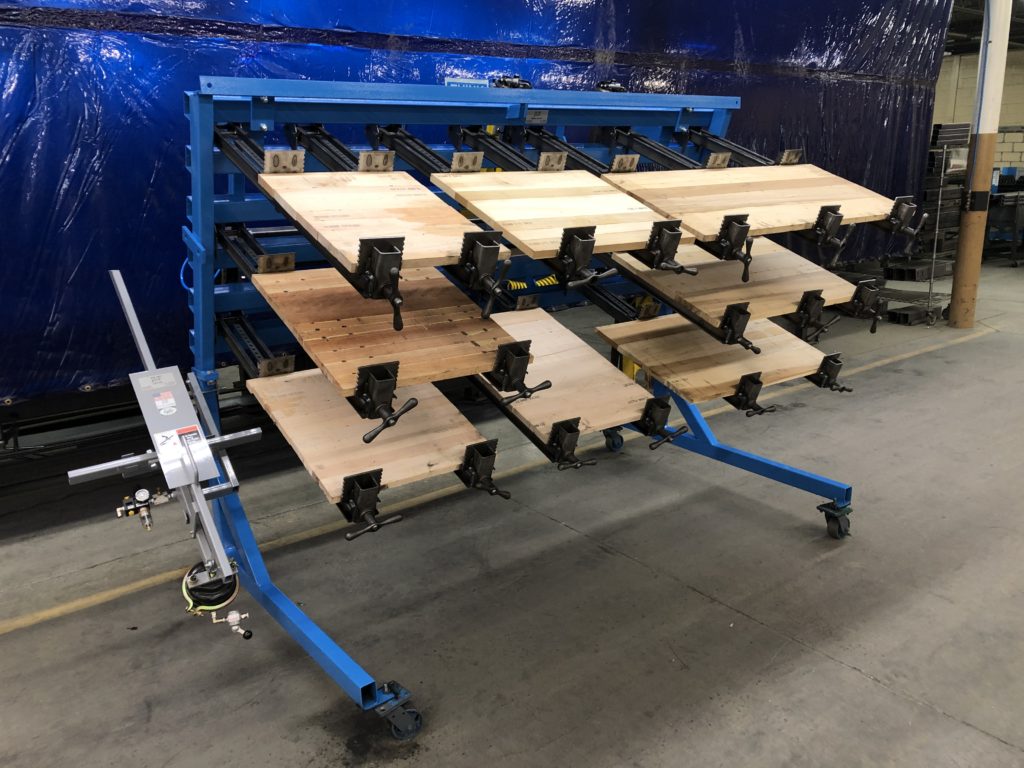

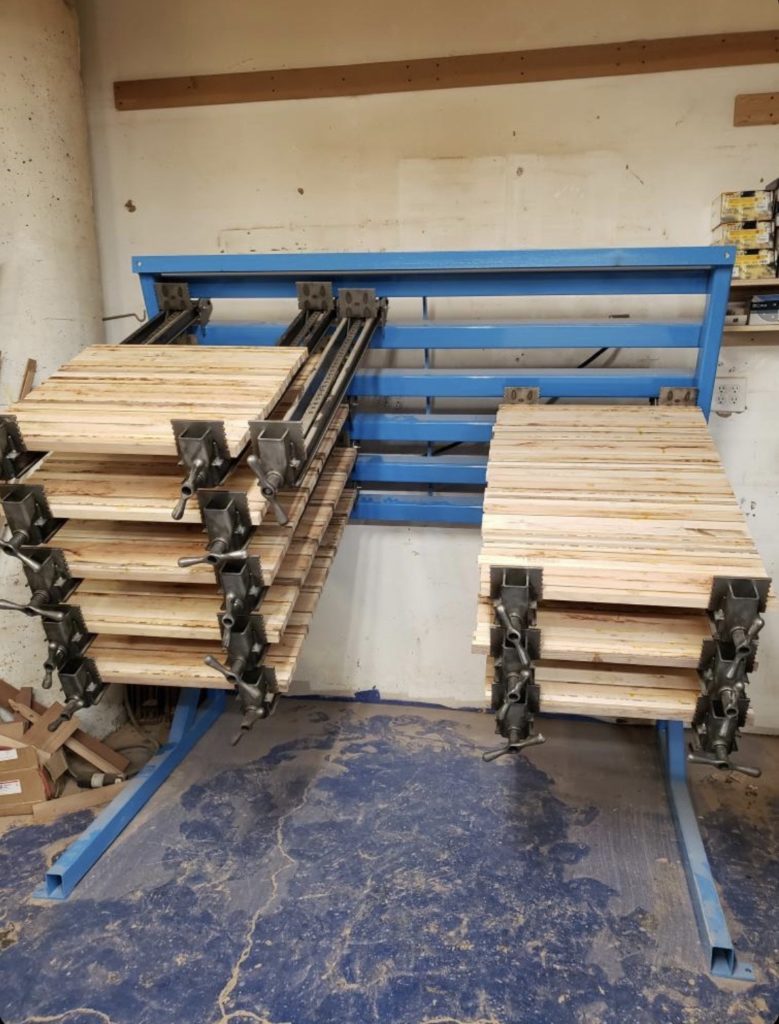

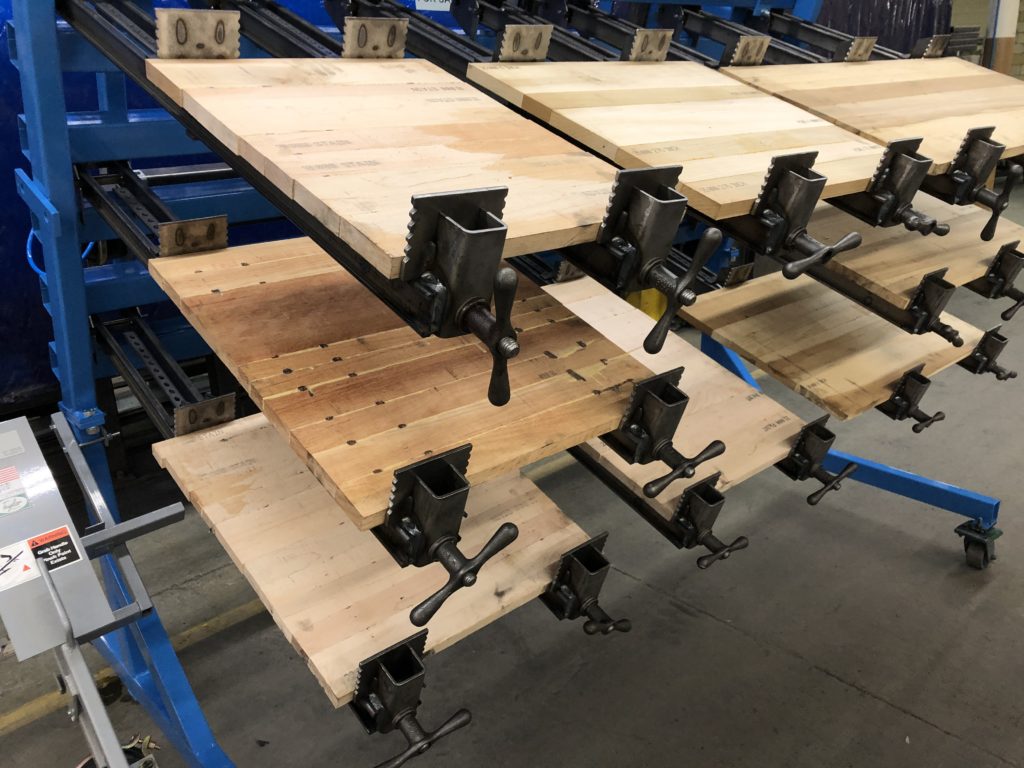

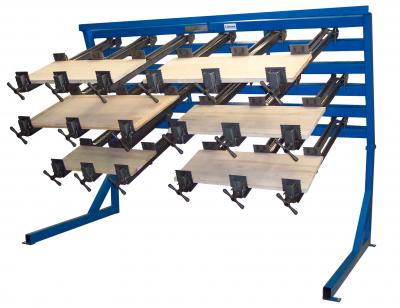

#79F-8-PC – 8′ Panel Clamp

#79F-8-PC – 8′ Panel Clamp

PRODUCE 50+ Edge Glued Panels a Day

Features:

  • (5) total gluing levels
  • Includes (18) 3 1/2″ High Jaw 40″ opening clamps (52″ Clamps Available upon Request)

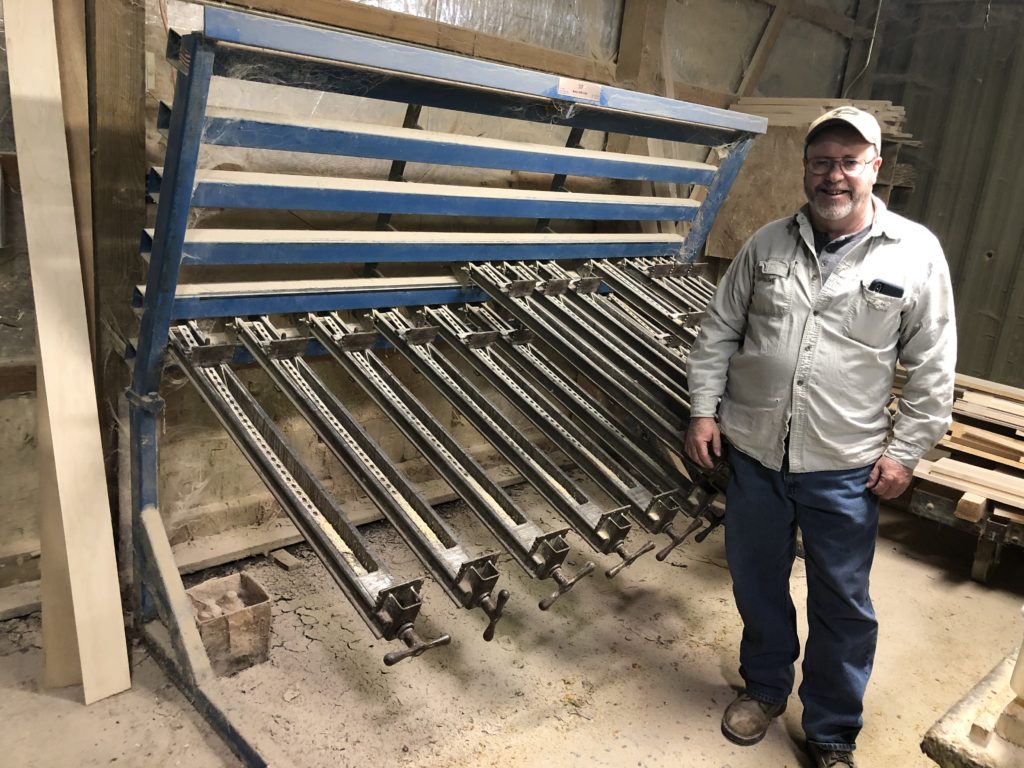

  • Innovative, Space Saving Feature that allows the Clamps to be hung Vertically when not in use

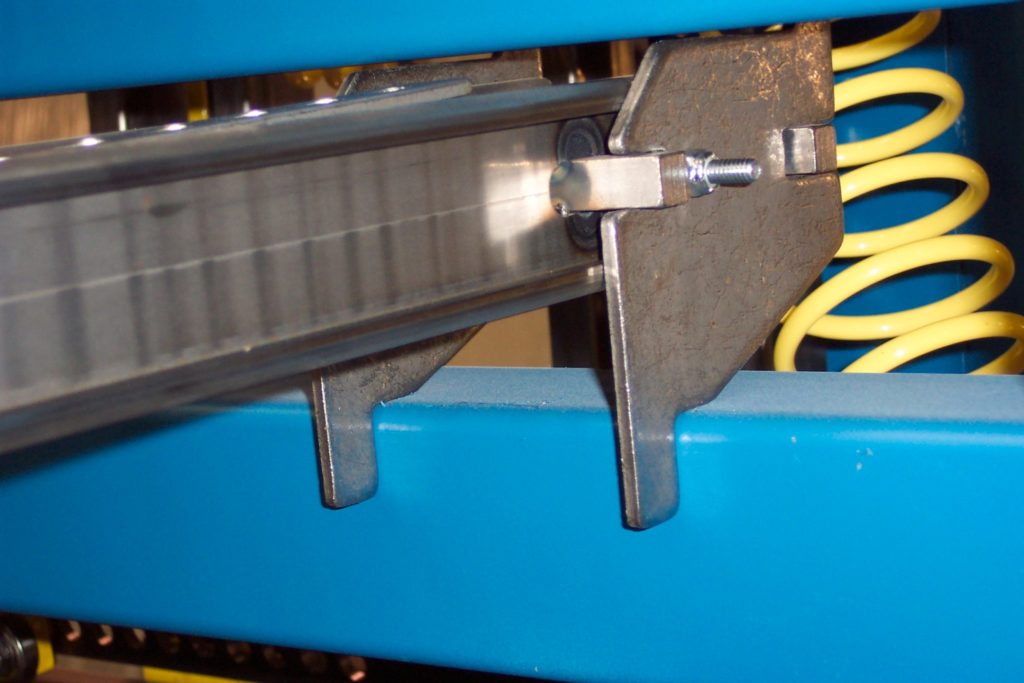

  • Taylor’s Patented and Successful Clamp Arm Design
  • Edge Glue and Face Glue a variety of solid wood components
  • 100% steel tubular construction that Creates a Flat and Even Work Area for Clamping Panels
  • Accessories: #302-40-H-R Clamps, 138B, 150B Glue Spreaders, 180A, 79-16 Hold Downs, 80-1706 Rocker Plates
Request a quote Call me
  • Edge Glue and Face Glue a variety of solid wood components
    • Produce 50+ edge glued panels per day with a Standard Setup

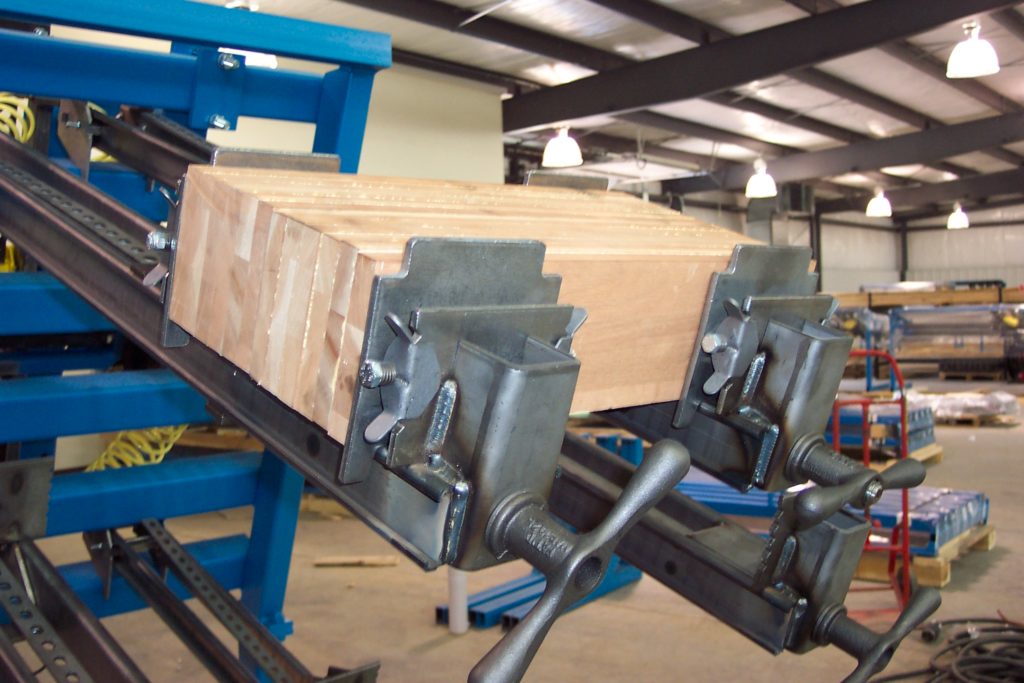

    • Face Glue, Utilizing our Rocker Plates, a Wide Variety of Railing Stock, Posts, Beams, Flooring Blanks, and more
  • Includes (18) 3 1/2″ High jaw 40″ Clamps
    • Optional 52″ Clamps Available on Request
  • Free Standing Unit with 3000 lbs. Weight Capacity
  • 100% Complete Tubular Steel Construction

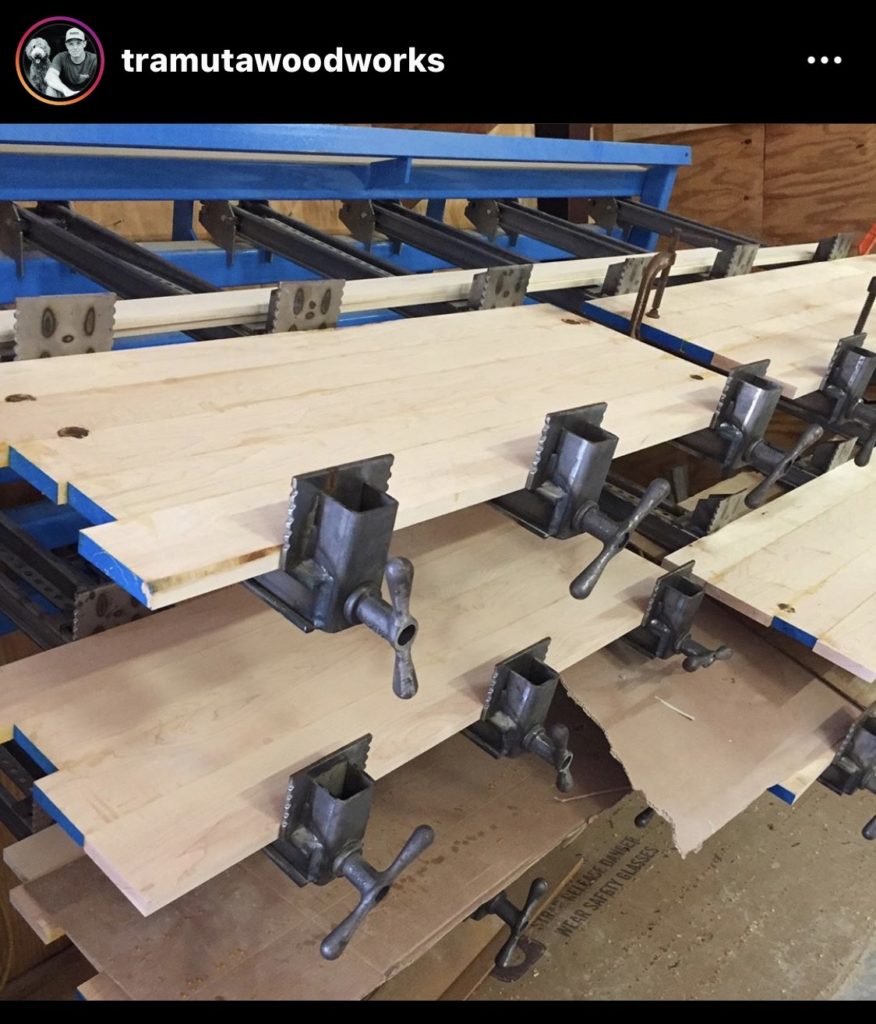

  • Put (2) 8′ Panel Clamps side by side for edge gluing up to 16′ long rail
  • Complete 3 Year Warranty
  • Accessories: #302-40-H-R Clamps, 138B 8″ x 48″ Taylor Plate Spreader, 150B Glue Spreader, 180A Pneumatic Panel Flattener, 79-16 Holddowns, 80-1706 Rocker Plates

  • Standard Stock Size of 40″ Maximum Opening
    • Additional Stock Size is 52″ Maximum Opening
    • Additional non-stock and Custom Sizes from 32″ – 120″ Opening
    • Minimum Clamp Opening of 9″
  • Robotically Welded / 100% Steel Construction
    • Lifetime Warranty on all Welded Components
    • Guaranteed never to Twist, Bow or Bend under normal working conditions
  • Each Clamp can Produce up to 3000 lbs of Clamping Force

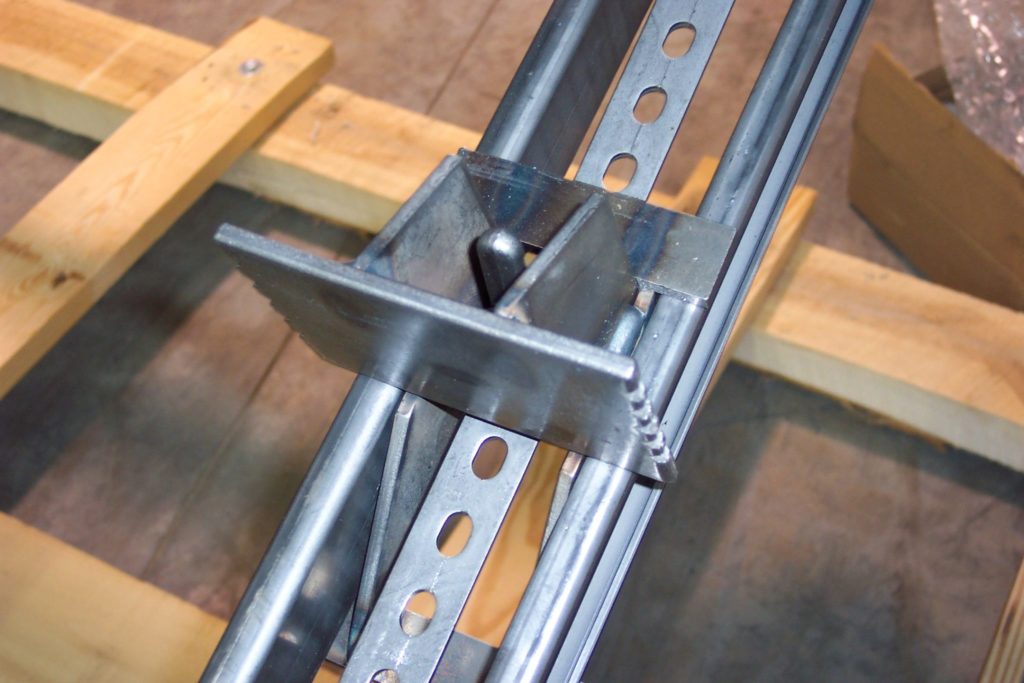

  • Patented Equalizer Design Provides Equal Clamping Force from the Front and Rear Jaws
    • Higher Quality Panels result from this Design with more even Glue Line Pressure
